張拉機
一、組成部分：由油泵車、千斤頂、小滑車升降架、油管等組成。
二、用途及特點：
適用于各類鋼筋混凝土預應力張拉設備作液壓動力配套，并可用于其它各種低流量，高壓力的液壓機械中。
三、技術性能
1）油泵車：額定油壓：50Mpa 額定流量2×2L/min 出油咀數：2個
電機型號：Y-100L2–4 B5 柱塞個數：2×3個 直徑10mm
油箱容積：50L 用油種類：夏季HJ32 冬季HJ15
重量：120KG 外形尺寸620×500×1100
2）千斤頂：規格有60T、100T、200T、300T、400T四個系列。

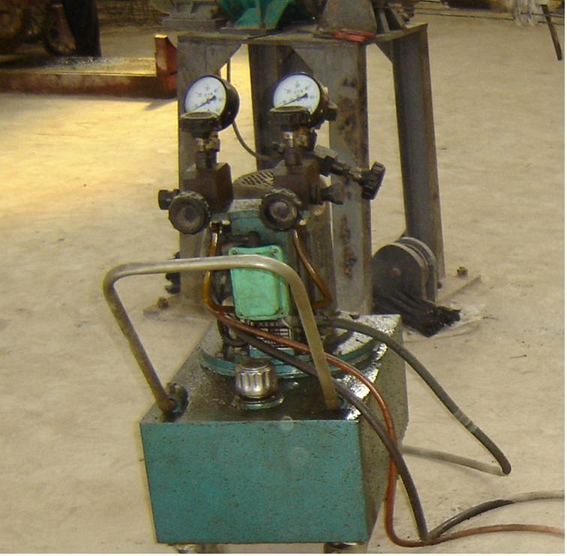

ZB2x250-1 pump car: ZB2x250-1油泵車：
Jack with pulley: 千斤頂和滑車：
Stretching machine張拉機
1 part: from the oil pump, car, Jack, a small pulley lifting frame, oil pipe.
2, use and features:
Applicable to all types of reinforced concrete prestressed tension device for hydraulic powered support, and can be used for other kinds of low flow, high pressure hydraulic machinery.
3, technical performance
1) pump: rated oil pressure: 50Mpa
Rated capacity of 2 × 2L/min
Oil nozzle number: 2
Motor type: Y-100L2 - 4 B5
Plunger number: 2 x 3
Diameter 10mm
Fuel tank capacity: 50L
Oil type: HJ32 HJ15 summer winter
Weight: 120KG
Dimensions 620 x 500 x 1100
2) Jack: specifications are 60T, 100T, 200T, 300T, 400T four series. |
